Create Assembly Item

New assembly items are created in the same dialog as normal retail items. (New item, field help)

  1. Assembly items are created by using the same steps as in creating a retail item except you select assembly item as an item type.

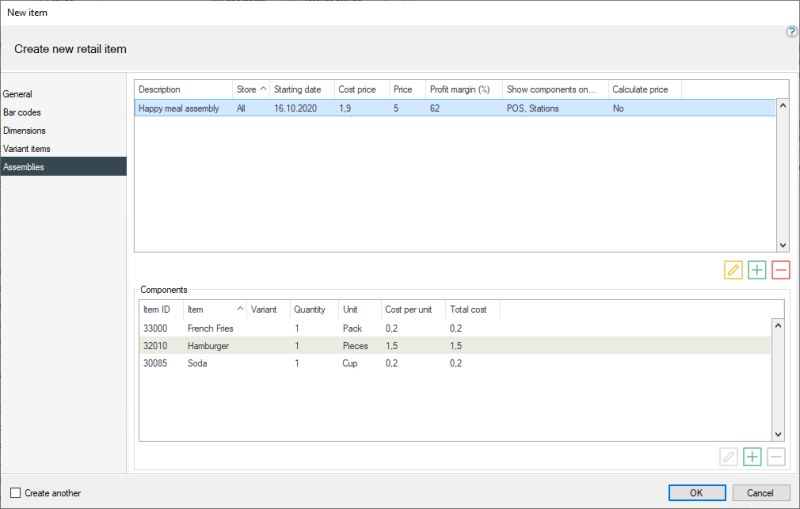

  2. Create assemblies in the Assemblies tab of the new item dialog:

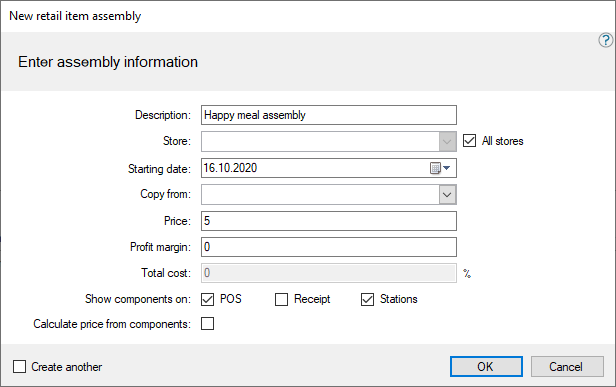

  3. In the upper list view press the to create the assembly in the Add/Edit Assembly dialog

  4. Enter a description for the assembly.
  5. Select if you want the assembly to belong to a specific store or to all stores.
  6. Select the starting date you want the assembly to become active for the store/stores.
  7. Use the copy from dropdown list if you want this assembly to copy it's settings and components from another previously created assembly.
  8. Enter the price information for the assembly.
    • If you are creating an assembly that is copied from a previously created assembly the profit margin will be calculated from the component price, depending on the price that has been entered. You can also enter a number into the profit margin field and the price will be calculated from the component prices according to the profit margin.
    • If you are creating an assembly that is not copied from a previously created assembly the profit margin will become 100% after you've created the assembly because it does not have any component prices.
  9. Choose if you want to show the components of the assembly on the POS, receipt or stations.
  10. Select the option to calculate price from components if you want the price of the assembly to be a calculated sum of its components.
  11. Press OK.

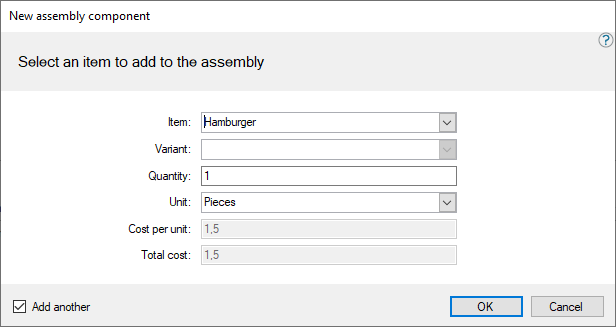

  12. In the lower list view press the to create the assembly components in the Add/Edit Assembly component dialog.

  13. Select the item you want to add as a component.
  14. Select a variant if it applies to the item.
  15. Enter the quantity of the item.
  16. Select a unit of for item.
  17. Click OK.
  18. To finish creating the assembly item, click OK on the new item dialog.

You can create an assembly item without creating assemblies and components, and you can create them later in the item view







Updated: October 2020
Version:

LS One 2020.1
